DataLearn Visual System

Apache Spark, explained as a visual architecture.

This gallery turns core Spark ideas into a structured visual journey: why distributed computing matters, how PySpark expresses work, and how Spark executes, partitions, shuffles, joins, caches, and optimizes data pipelines at scale.

Apache Spark powering massive data systems
16 visual lessons
4 learning stages
1 mental model
16:9 slide-ready format

Visual Walkthrough

Each frame focuses on one concept and explains what the learner should understand before moving to the next Spark topic.

Apache Spark powering massive data systems
Slide 01Scale

Apache Spark: Powering Massive Data Systems

Spark is introduced as a distributed data engine that breaks large workloads into parallel tasks across many machines.

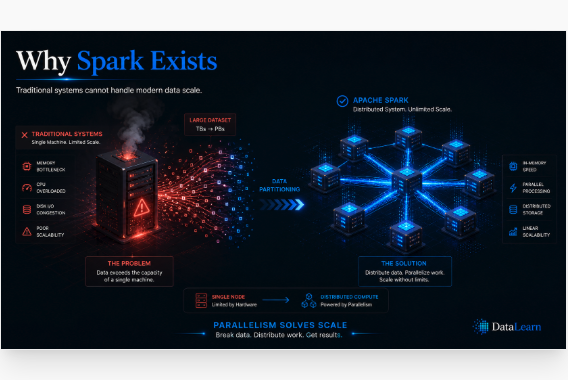

Why Spark exists: scaling data challenges
Slide 02Problem

Why Spark Exists

Modern datasets exceed the limits of a single machine, so Spark distributes storage, compute, and execution pressure.

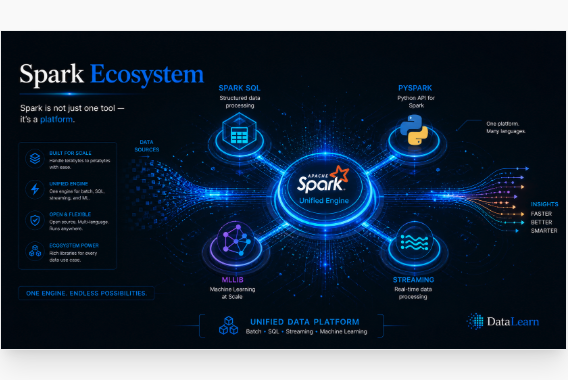

Spark ecosystem tech platform infographic
Slide 03Platform

Spark Ecosystem

Spark is more than a processing engine; it is a unified platform for SQL, Python, streaming, and machine learning workloads.

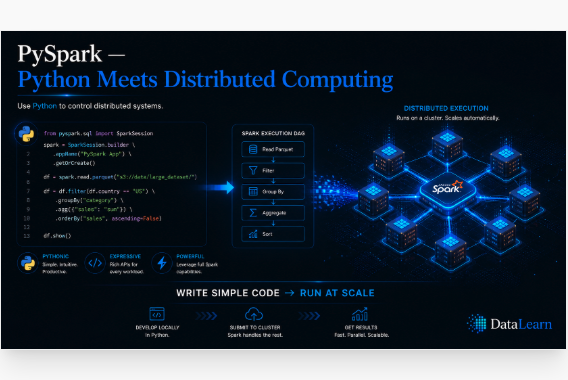

PySpark: Python meets distributed computing
Slide 04Interface

PySpark: Python Meets Distributed Computing

PySpark lets learners write familiar Python code while Spark translates that intent into distributed execution plans.

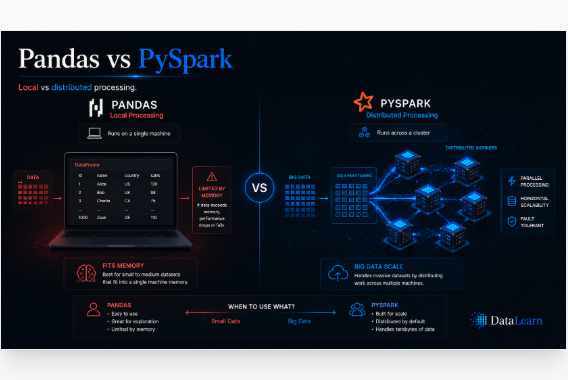

Pandas vs PySpark comparison infographic
Slide 05Compare

Pandas vs PySpark

Pandas is ideal for local, memory-bound analysis; PySpark is built for partitioned data and parallel work across a cluster.

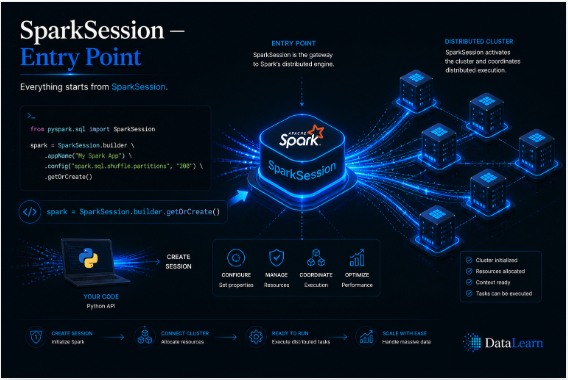

Apache Spark Session overview
Slide 06Entry Point

Apache Spark Session Overview

The SparkSession acts as the main gateway into Spark, connecting user code with DataFrames, SQL, catalogs, and execution.

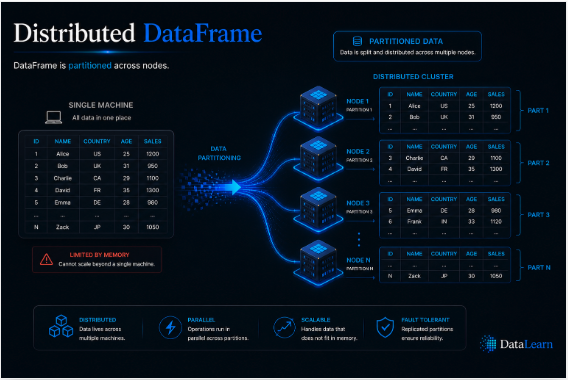

Distributed dataframes scaling with nodes
Slide 07Data Model

Distributed DataFrames

A Spark DataFrame looks logical and tabular to the user, but physically it is split into partitions across cluster nodes.

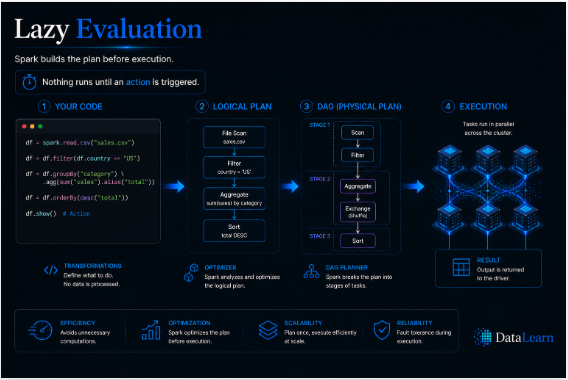

Lazy evaluation in Spark pipeline
Slide 08Execution

Lazy Evaluation

Spark records transformations first and delays execution until an action is called, giving the optimizer time to improve the plan.

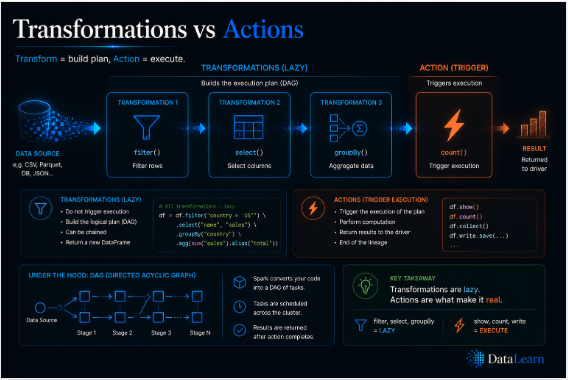

Transformations vs actions in Spark
Slide 09Concept

Transformations vs Actions

Transformations define a new dataset, while actions trigger computation and return results, files, or materialized outputs.

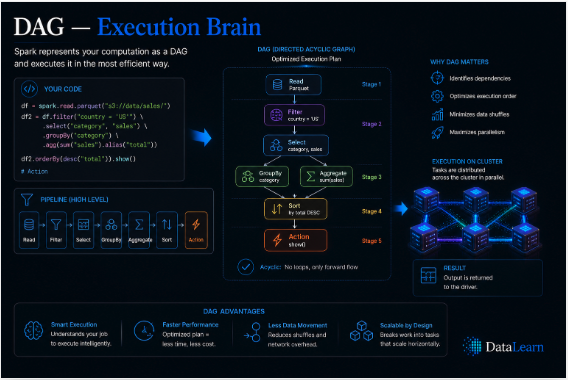

DAG execution flow and optimization
Slide 10DAG

DAG Execution Flow

Spark converts chained operations into a directed acyclic graph, then breaks that graph into stages and tasks.

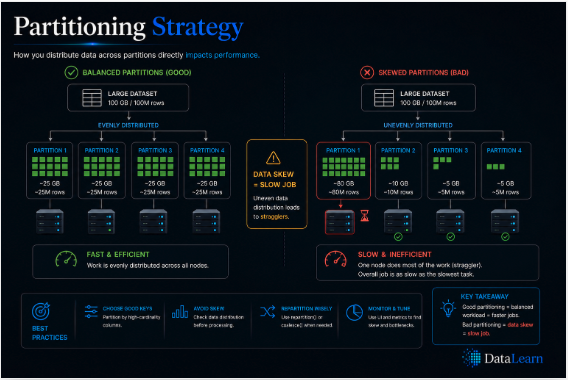

Partitioning strategy good vs bad
Slide 11Partitioning

Partitioning Strategy

Good partitioning balances work across the cluster; poor partitioning creates skew, idle executors, and slow pipelines.

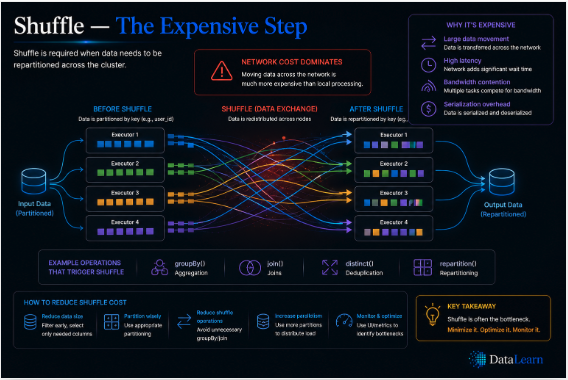

Shuffle: The expensive step explained
Slide 12Shuffle

Shuffle: The Expensive Step

Shuffle moves data across the network so related records can meet, making it one of Spark's most expensive operations.

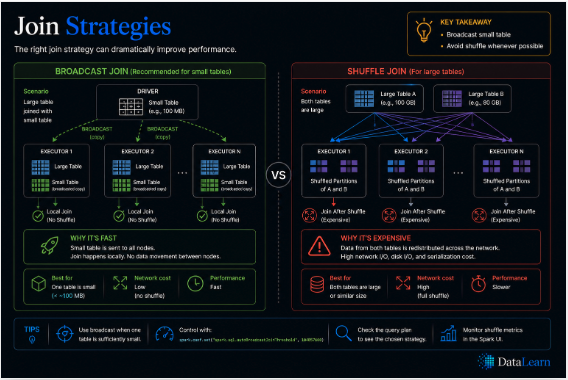

Join strategies broadcast vs shuffle
Slide 13Joins

Join Strategies

Broadcast joins reduce movement when one table is small, while shuffle joins are necessary when both sides are large.

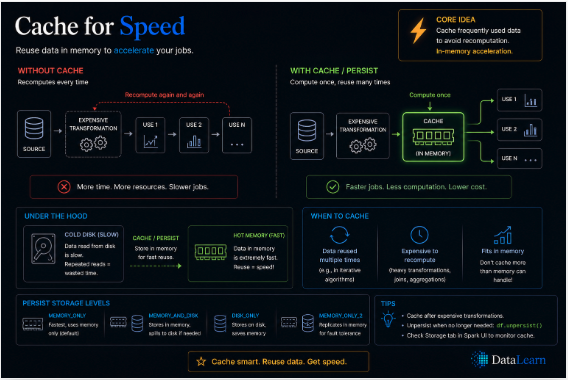

Cache for speed: enhancing data systems
Slide 14Performance

Cache for Speed

Caching keeps reused data close to the executors, avoiding repeated scans and accelerating iterative analysis.

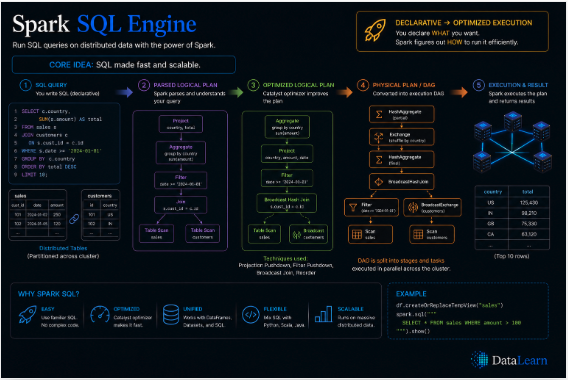

Spark SQL engine workflow infographic
Slide 15SQL

Spark SQL Engine Workflow

Spark SQL turns declarative queries into analyzed, optimized, and executable plans for the distributed runtime.

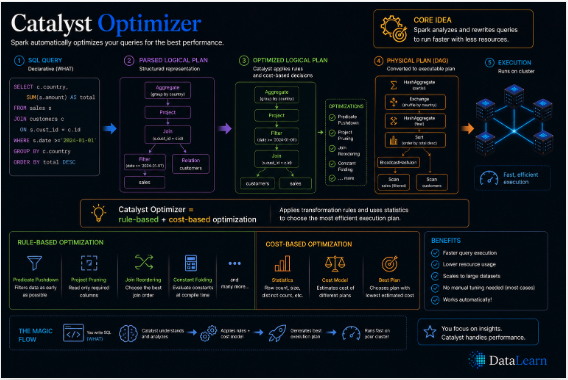

Catalyst optimizer workflow diagram
Slide 16Optimizer

Catalyst Optimizer

Catalyst rewrites and improves query plans through analysis, logical optimization, physical planning, and code generation.

Teaching use:

Use this page as a visual index for a Spark learning module. The sequence moves from big-picture intuition into execution mechanics, so learners can connect architecture, code, and performance behavior.
